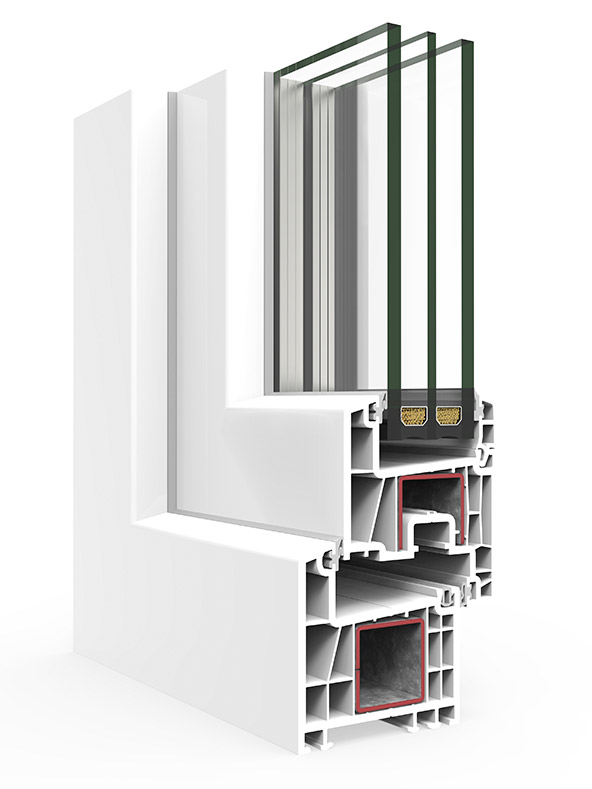

Cortizo 70 AD

Featuring 70 insulation chambers within the frame and sash, the Cortizo 5 system provides outstanding thermal and acoustic comfort indoors.

Advantages

  • Class S profile (severe climate)
  • High thermal performance
  • Security class RC2
  • The system can be covered with over 70 decorative foils in RAL colors, imitations of wood or metals and allows simple, oscillating or sliding-swing opening options.

Certifications

  • Class B - in accordance with SR EN 12608
  • Class S - severe climate
  • IFT Rosenheim

Technical Characteristics

Frame Depth 2.76 inches
Number of Seals 2 seals
Number of Chambers 5 chambers
Maximum Glazing Thickness 1.65 inches
Profile Class B

Performance

Thermal performance UW ≥ 0.15 BTU/(hr·ft²·°F)
Acoustic performance 46 dB

ESA classifications

Air resistance Class 4 according to UNI EN 12207
Water resistance Class E1800A for 2 openings according to UNI EN 12208
Wind resistance Class C5 / B5 for one opening and Class C5 / B5 for 2 openings according to UNI EN 12210
