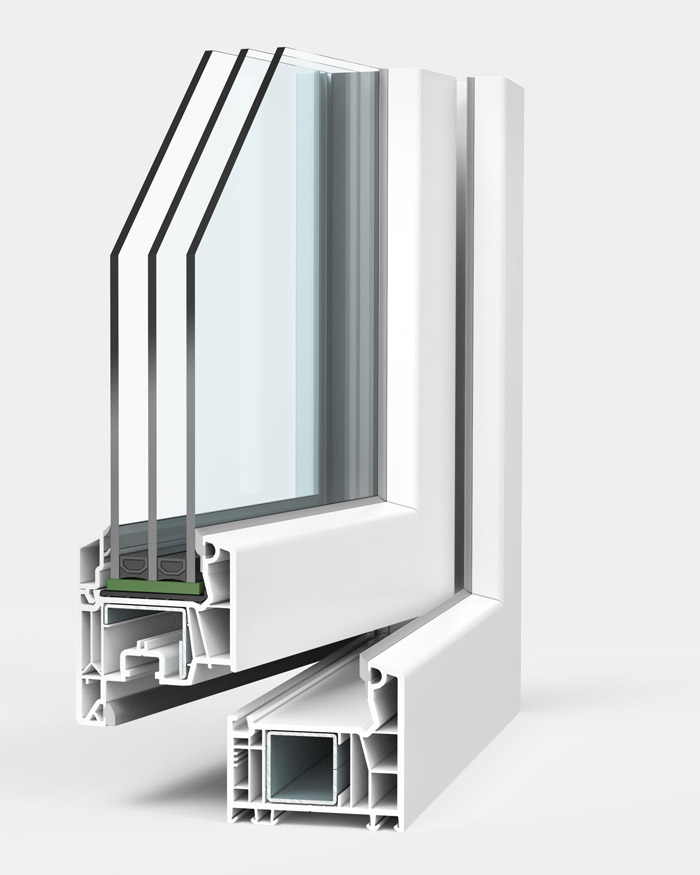

VEKA 76 MD
With a frame depth of 3 inches, the VEKA 76 system offers the perfect balance between energy efficiency and cost.
The varied range of battens allows the integration of glass packages with a thickness of up to 1.89 inches for the entire VEKA 76 series.
In this context, the special geometries of the gaskets help to improve the visual appearance of the glass contact area.
Advantages
V Perfect Welding
V Perfect welding is an advanced technology used in the manufacturing of PVC windows, ensuring aesthetically pleasing and durable corner joints.
Here are the key features and benefits of V Perfect welding:
Superior Aesthetics: V Perfect welding creates nearly invisible joints, giving windows a sleek and modern appearance. The weld line is extremely thin and smooth, free of any burrs or irregularities.
Durability and Strength: This technology provides exceptionally strong joints, enhancing the durability and longevity of the windows. V Perfect welded windows are more resistant to mechanical stress and adverse weather conditions.
Energy Efficiency: Perfect joints reduce the risk of air and water infiltration, contributing to better thermal and acoustic insulation. V Perfect welded windows help improve the energy efficiency of buildings.
Versatility V Perfect welding is suitable for a wide range of profiles and colors, allowing for customized window designs tailored to individual preferences.
This technology is typically employed by window manufacturers who aim to offer high-quality products with outstanding aesthetic appeal.
Technical Characteristics
| Frame Depth | 3 inches |
|---|---|
| Number of Seals | 3 seals |
| Number of Chambers | 5 chambers |
| Maximum Glazing Thickness | 1.89 inches |
| Profile Class | A |
Performance
| Thermal performance | UF ≥ 0.176 BTU / (h·ft²·°F) UW ≥ 0.118 BTU / (h·ft²·°F) |
|---|---|
| Acoustic performance | 48 dB |
